Playstation 5 HDMI Port BOARD ONLY SERVICE

Playstation 5 HDMI Port BOARD ONLY SERVICE

$65.00

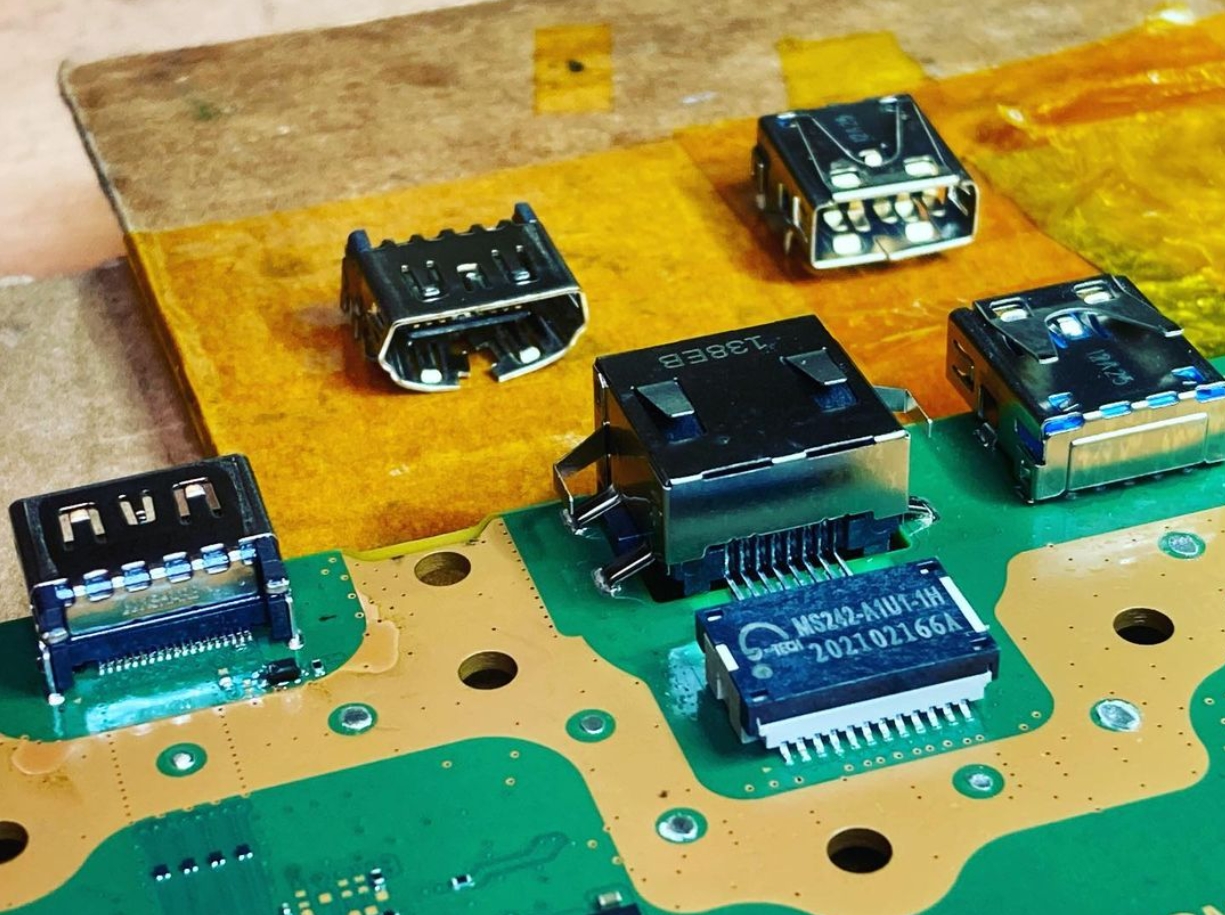

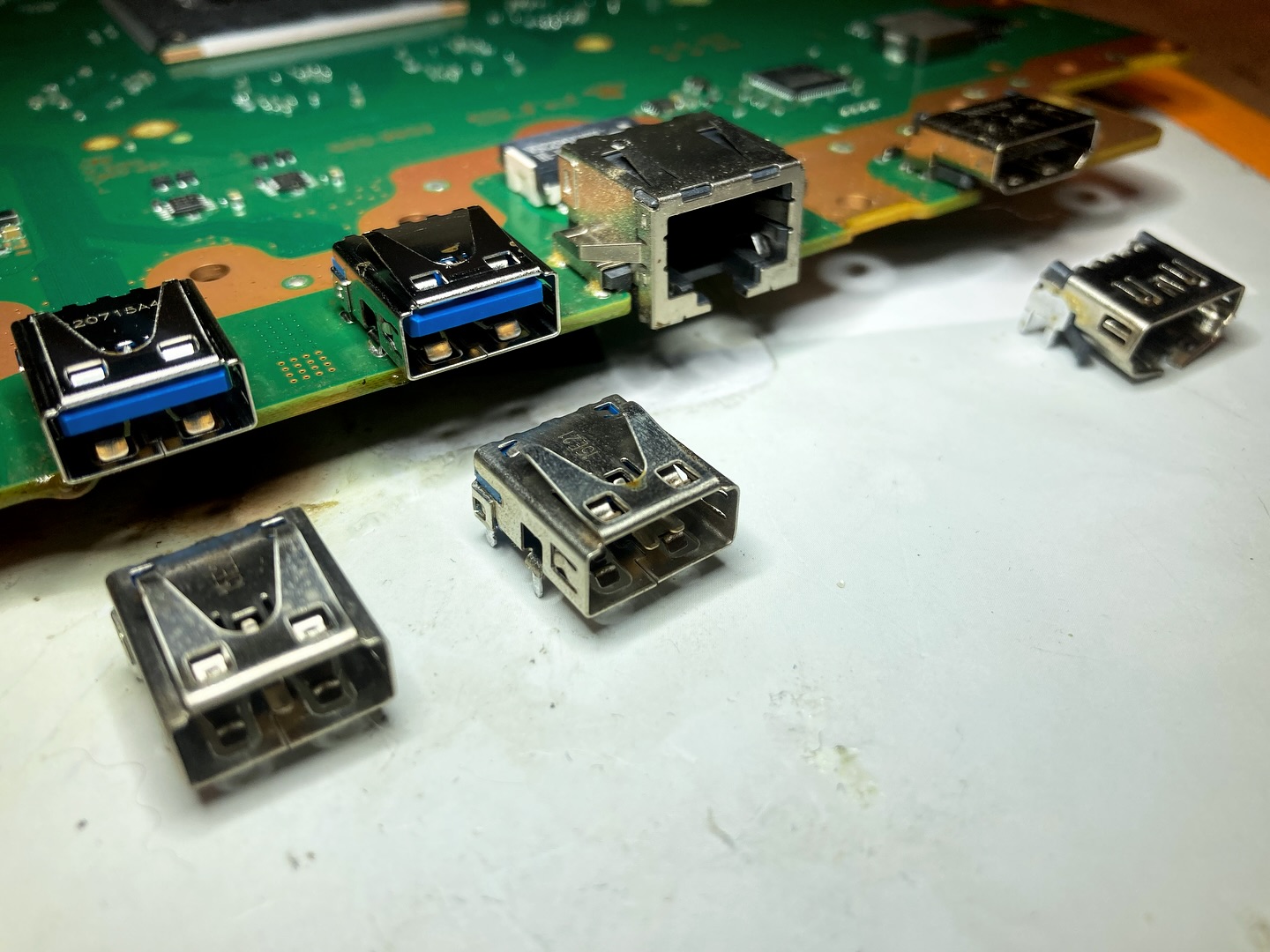

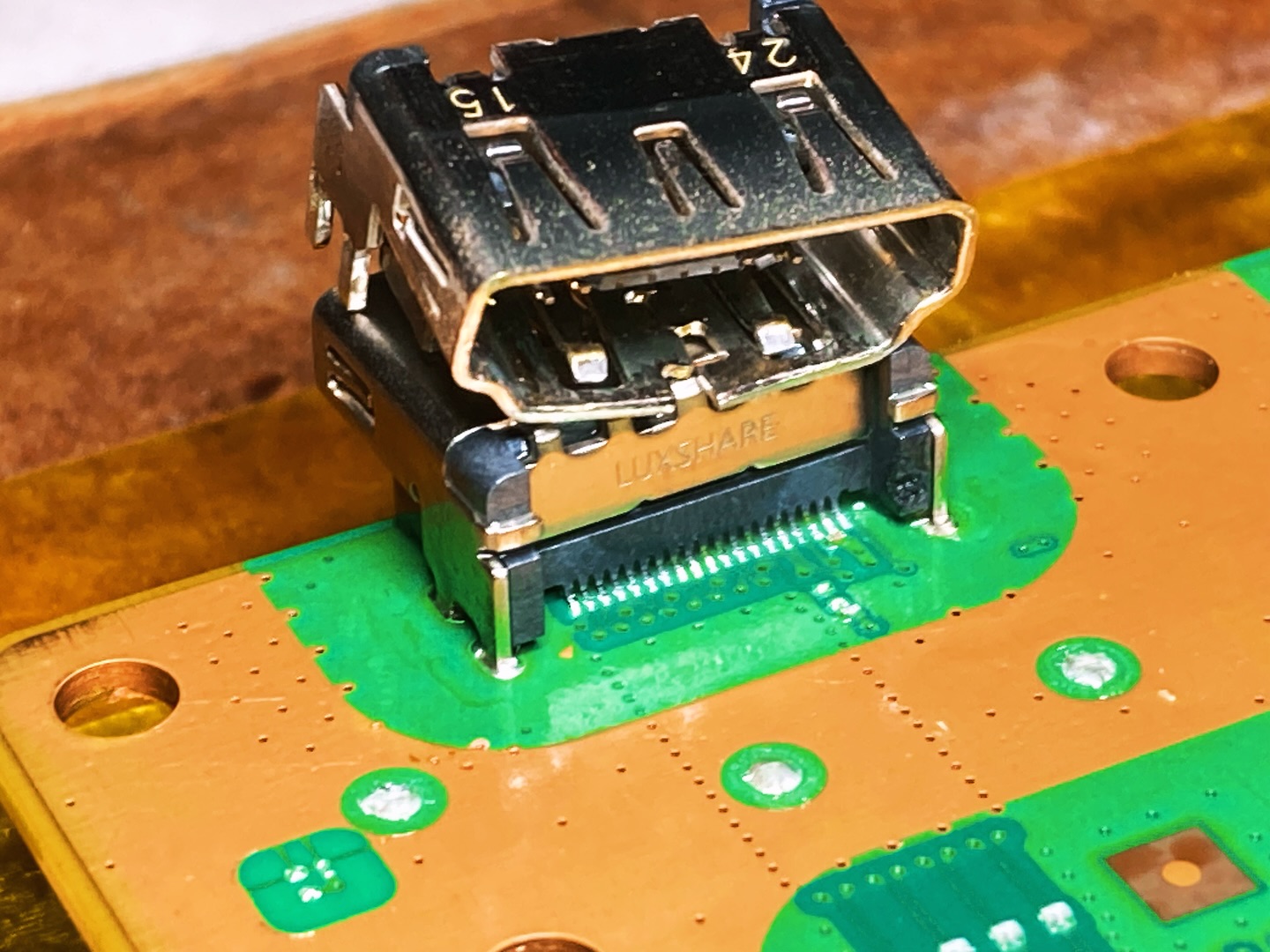

PlayStation 5 HDMI Port Repair — Board Only

Board-only HDMI port replacement for PS5, using a higher-quality port than Sony’s original. Built for repair shops and DIY customers who’ve already extracted their board and confirmed the HDMI port is the fault.

Not comfortable extracting your own board? Use the regular PS5 HDMI repair service instead and we’ll handle everything.

  • This repair is genuinely difficult due to nearby chips and how the port connects to the board — conventional hot air removal can damage the PCB
  • We use specialized equipment to remove the socketed port without harming the board, every time
  • We send high-quality photos of your board with the new port installed once complete

Repair shops: bulk order discounts available — contact us before placing an order.

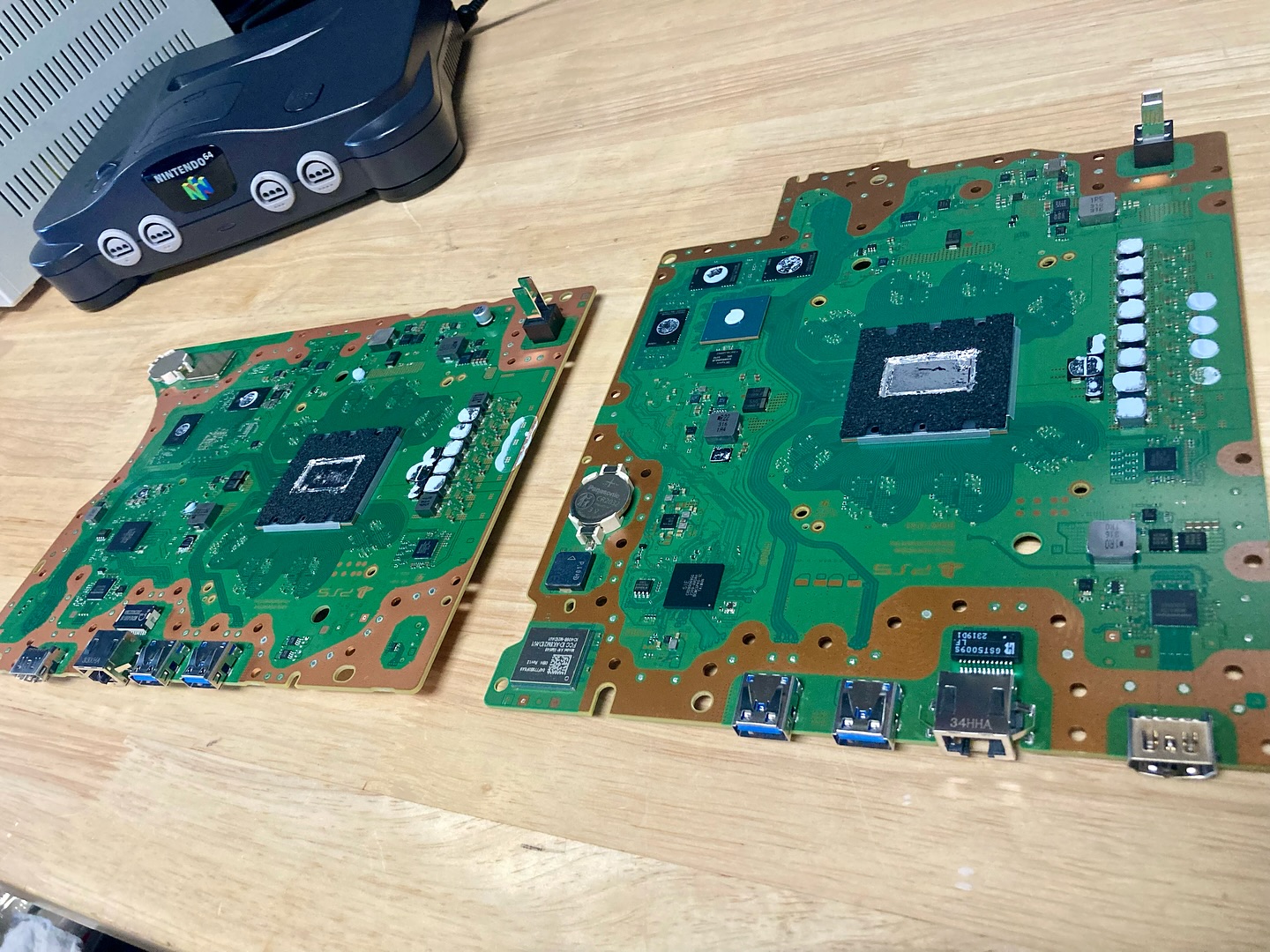

Before you send your board

  • Carefully extract your board — don’t damage anything or rip cables. We’re not responsible for disassembling or reassembling your console as part of this service.
  • Important — PS5 liquid metal: the PS5 uses liquid metal on the APU/CPU, which can slosh around and cause damage during shipping. Before sending your board, either:

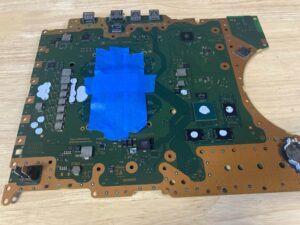

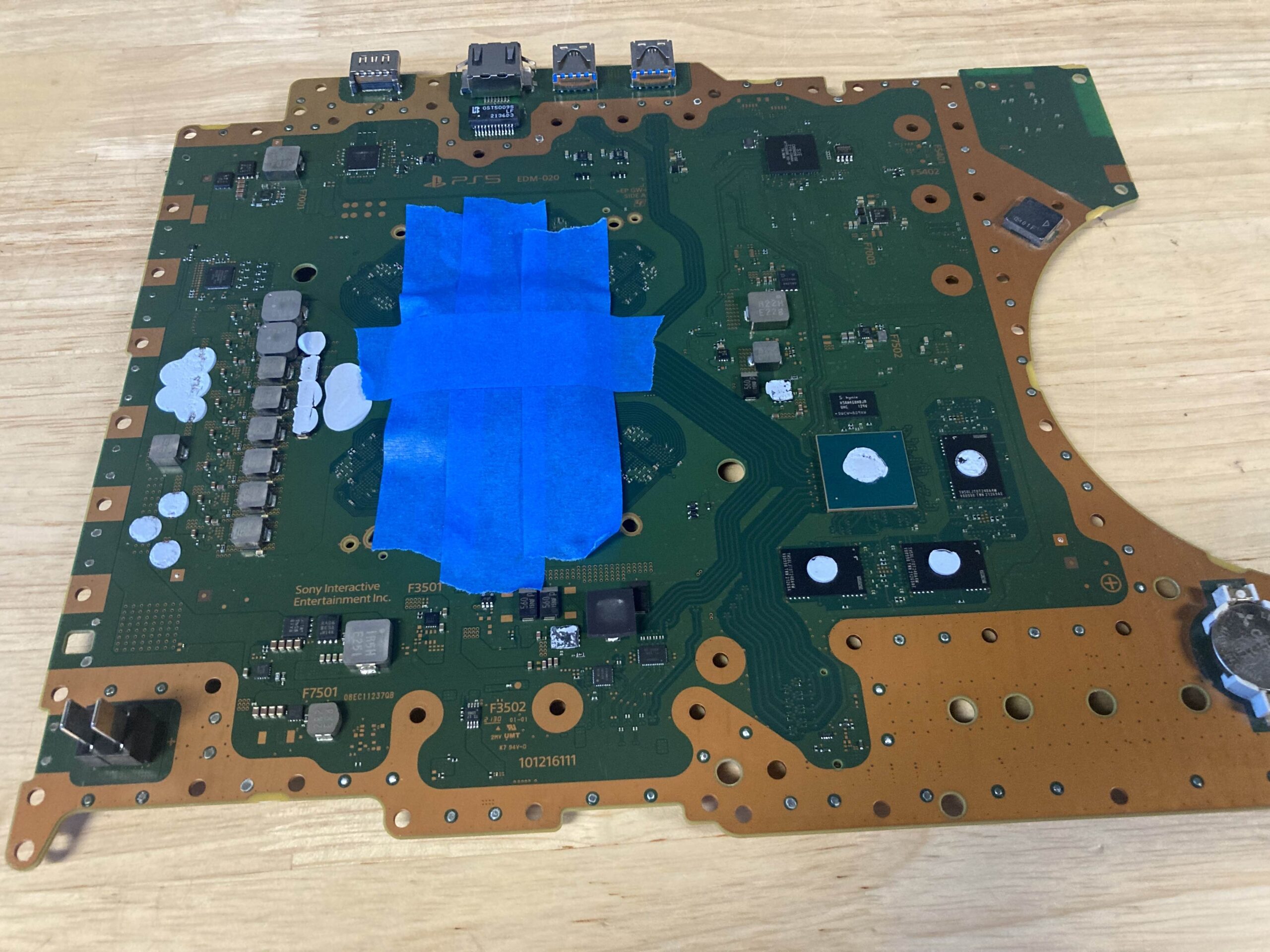

    • Tape the APU to hold the liquid metal in place, or
    • Fully remove the liquid metal from the APU/CPU using a cloth and 90%+ isopropyl alcohol
  • Use high-end liquid metal (not regular thermal paste) when reinstalling — regular paste will cause overheating
  • Contact us first if your board has prior repair work done to it, or any other visible damage

Mainboard Extraction // Previous Failed Attempts Repair Policy:

Carefully extract your board.  DO NOT damage anything or rip cables.   We’re not responsible for assembling and reassembling your console with this service.

For PS5, because it has liquid metal:  For shipping You need to take extra care of the APU/CPU to prevent liquid metal from sloshing around the board during transit.

You have two options:   Tape the APU (see below)  or carefully remove all liquid metal from APU/CPU with a cloth and 90%+ Isopropryl Alchohol.

Please use high end liquid metal when redoing your thermals back to heatsink when reinstalling your board,  using regular thermal paste will overheat the Playstation 5.

If you aren’t comfortable with this, please just use the regular PS5 HDMI port service here and we take care of all of it for you.

Please contact us prior if your board has previous work done to it, or if there is other damage.

Ripped Traces or Cracked/Missing parts  due to failed repair attempts may be rejected with a partial refund sent back to you at our discretion.

Ripped Traces may or may not be included in this service, but best to email us photos or damage up front so there are no surprises.



What to include

Board only — no cables, controllers, or games needed. Make sure no discs are in the tray if any part of the console ships along with it, and pack it well.

Please double-check your own HDMI cable for cracks or bent pins — include it only if you’re unsure of its condition.

Note: if you send the full console instead of just the board, we’ll charge the difference for full-console service via electronic invoice.

Re-damaging a newly soldered port will void your warranty.

How it works

  1. Place your order and you’ll get an email with shipping instructions and your order number
  2. Ship your board to us or drop it off in person
  3. We repair, test, and photograph your board working before it ships back
  4. Return shipping is included in this purchase

Terms & Conditions

  • You’re responsible for shipping your board to us
  • Repairs may take longer if parts aren’t in stock
  • If your board turns out to be unrepairable, we’ll refund your purchase price minus any materials already used
  • Parts & labor warranty: 90 days from delivery back to you
  • Warranty doesn’t cover ports that are physically damaged again after repair



Additional information

Weight 11 lbs
Dimensions 16 × 15 × 12 in
